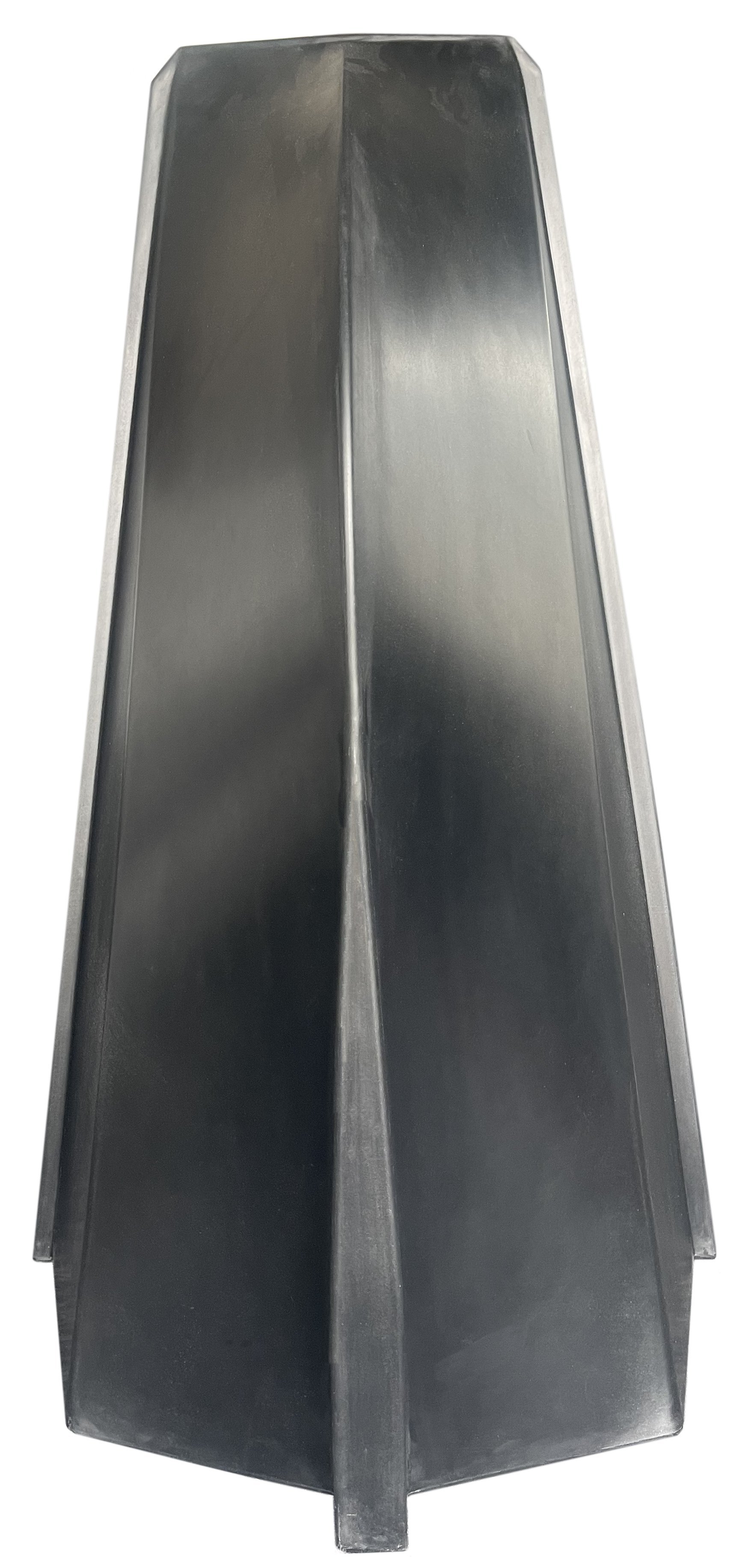

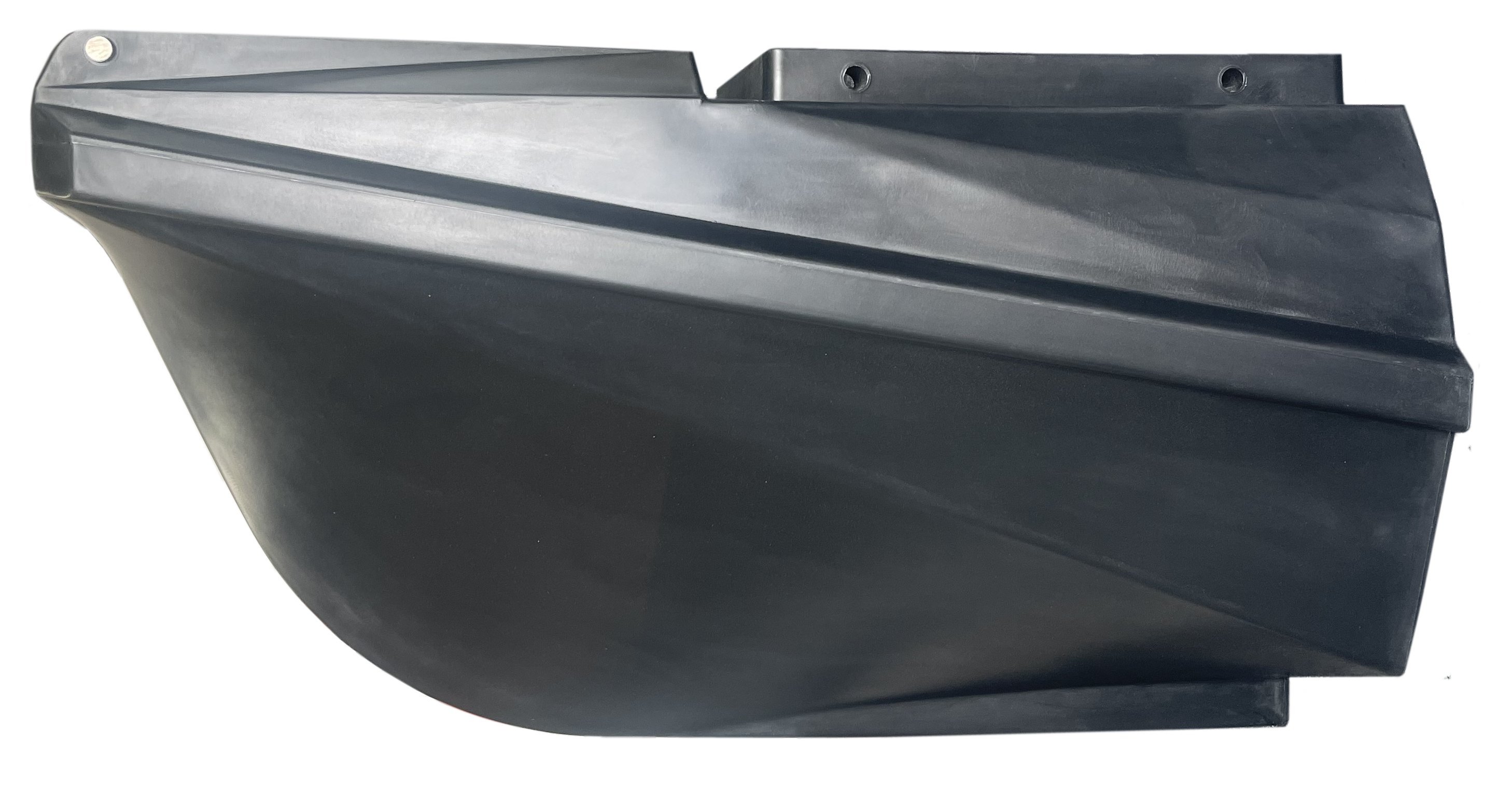

333 LITRE NOSE CONE
This float was designed to help create a bow section for moving craft when joined with the 333 Litre Flotation Module can form one of the hulls of a catamaran travelling craft..
To see moving craft click here
Large Detailed Drawing a4-0306 - 333 Litre nose cone
a4-0306 - 333 Nose Cone
a4-774 333 Litre float and Nose Cone assembly detail
|
MOVING CRAFT DRAWINGS
Drawing a4-1893 3.4 Mtrs Long x 2mtr wide
Drawing a4-1463 4.6 Mtrs Long x 2.5mtr wide
Drawing a4-2579x 4.6 Mtrs Long x 2.5mtr wide Model with handrail
Drawing a4-0775 6.9 Mtrs Long x 2.5mtr wide
|
