900 LITRE FLOTATION MODULE
This is a multi purpose float which is a narrower version of the 1200 litre unit.
It was primarily designed as a finger float for large marinas, however, it can also be used under residential docks that require high freeboard. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required.

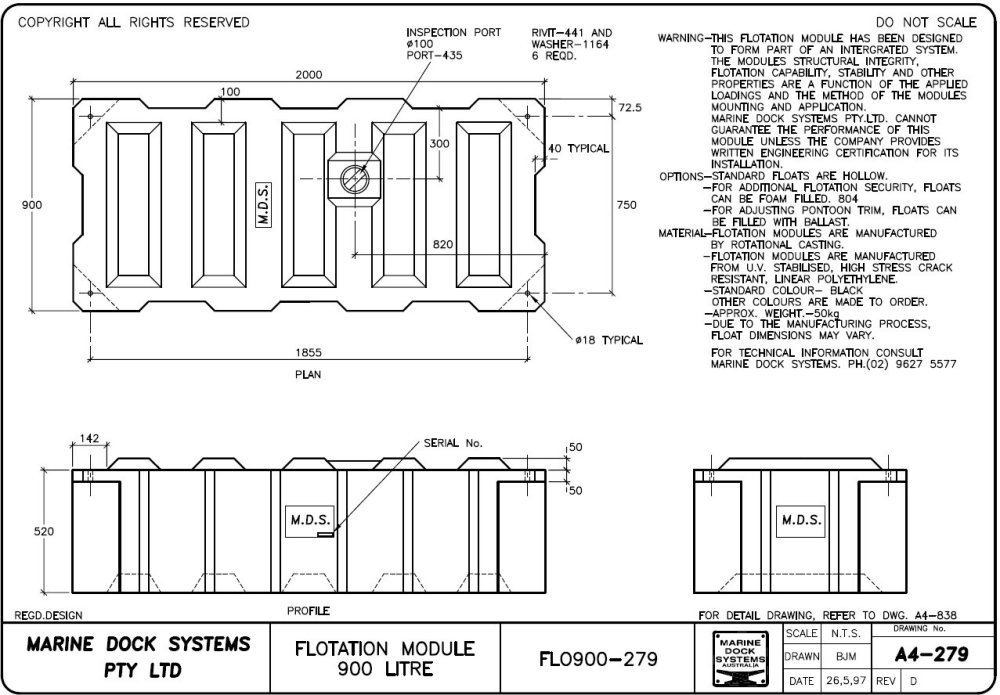

Large Detailed Drawings a4-0279 - 900 Litre float
a4-0279 - 900 Litre float
Hrdrostatic graph a4-1852 9.6mtr x 1.3 mtr marina finger - Alloy frame |
|
|
| |
